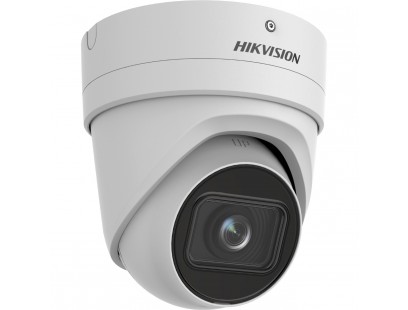

Hikvision dome DS-2CD2H46G2-IZS(C) (balta, 4 MP, 40 m. IR, AcuSense)

Lęšis
Lęšio tipasVarifocal lens, motor-driven lens, 2.8 to 12 mm
FOV2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
Lęšio montavimasØ14
Rainelės tipasFixed
DiafragamaF1.4

DORI
DORI
2.8 to 12 mm:
Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m

Vaizdas
Pagrindinis srautas
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Trečias srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Vaizdo suspaudimas
Main stream: H.265/H.264/H.265+/H.264+
Sub-sstream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Vaizdo bitų greitis32 Kbps to 8 Mbps
H.264 tipasBaseline Profile/Main Profile/High Profile
H.265 tipasMain Profile
Bitų greičio kontrolėCBR/VBR
SVCH.264 and H.265 encoding
ROI1 fixed region for main stream and sub-stream

Garsas
Garso tipasMono sound
Garso suspaudimasG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimasYes

Internetas
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Vidinė atmintis
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
KlientasiVMS-4200, Hik-Connect, Hik-Central
Naršyklė
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Nuotrauka
Nuotraukos parametrų keitiklisYes
Nuotraukos nustatymaiRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Diena/Naktis režimasDay, Night, Auto, Schedule
WDR120 dB
SNR≥ 52 dB
Nuotraukų pagražinimasBLC, HLC, 3D DNR

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in micro SD slot, up to 256 GB
Garsas
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
Perkrovimo mygtukasYes

Funkcijos
Pagrindinės funckcijosMotion detection (human and vehicle targets classification), video tampering alarm, exception
Išmaniosios funkcijos
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
SąsajaUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning

Pagrindinis
Sistemos parametrai
12 VDC ± 25%, 0.92 A, max. 11 W, two-core terminal block, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
DydisØ135.8 mm × 145.5 mm (Ø5.4" × 5.8")
Pakuotės dydis170 mm × 170 mm × 205 mm (6.7" × 6.7" × 8.1")
Approx. 1075 g (2.4 lb.)
Svoris su įpakavimuApprox. 1525 g (3.4 lb.)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijosAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Patvirtinimai
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
Saugumas
UL (UL 60950-1);
CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);
CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);
LOA (IEC/EN 60950-1)
AplinkosaugaCE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
ApsaugaIP66 (IEC 60529-2013), IK10(IEC 62262:2002)
