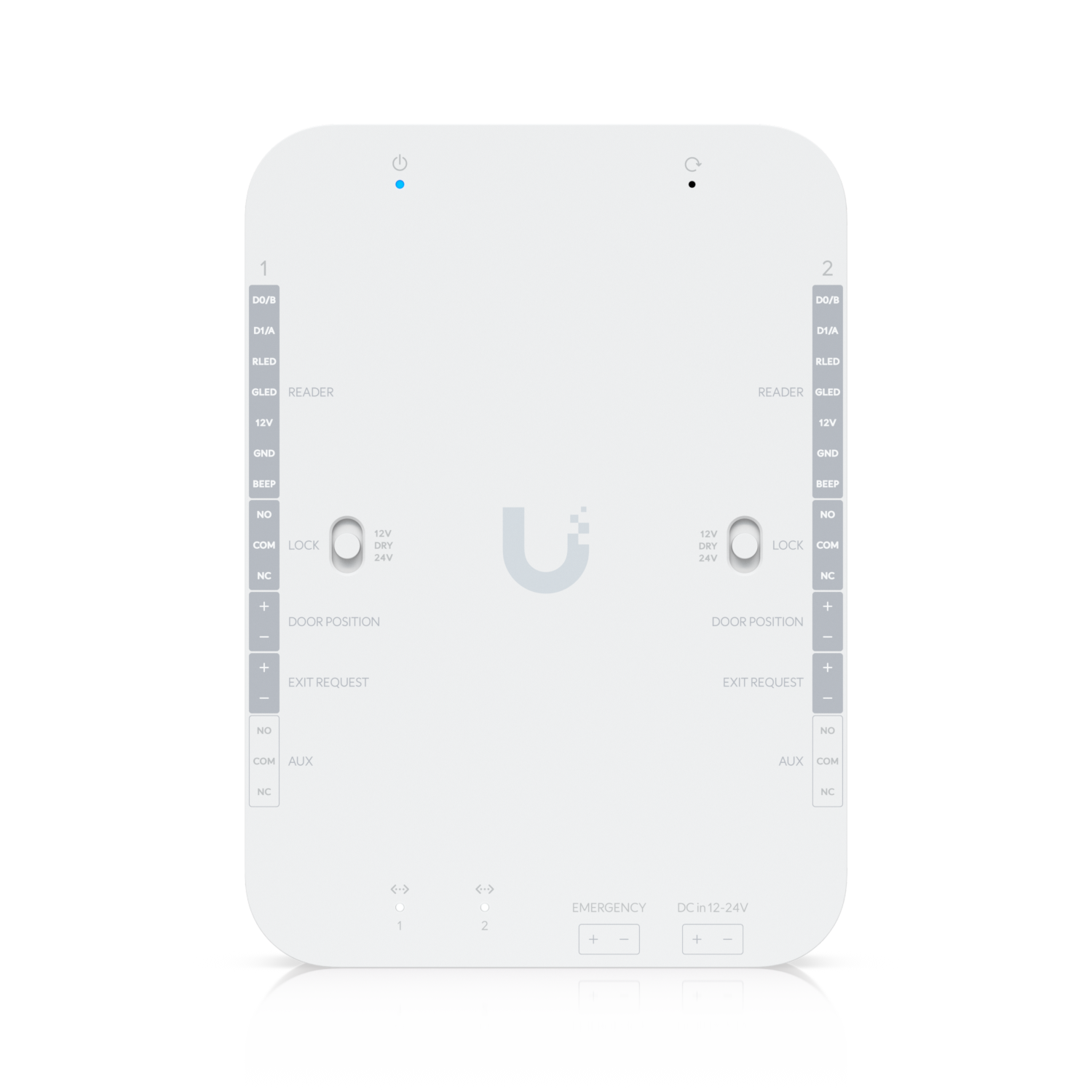

2 durų kontroleris Ubiquiti UA-Retrofit-Hub-2 (Wiegand, OSDP, 12/24V DC, 2x RJ45)

Overview
Matmenys140 x 120 x 45 mm (5.5 x 4.7 x 1.8")
Palaikomos durys2
Maximum User Count10,000
Įvesties terminalai(2) Third-party Wiegand Reader / UniFi Retrofit Reader (2) Door exit request (2) Door position (1) Emergency
Maitinimo būdas12/24V DC
Atitinka NDAA✓

Aparatūra
Skaitmeninis įvestis(2) Third-party Wiegand Reader / UniFi Retrofit Reader (2) Door exit request (2) Door position (1) Emergency
Sausa išėjimo relėLock: rated 30V DC, up to 1A Aux: rated 30V DC, up to 1A
Maitinama išėjimo relė12V Lock: 12V DC, up to 1A 24V Lock: 24V DC, up to 0.5A
Vidinis ir lauko naudojimasIndoor only
Aplinkos darbinė temperatūra-10 to 40° C (14 to 104° F)
Aplinkos veikimo drėgmė5 to 90% noncondensing
Tinklo sąsaja(2) 10/100 MbE RJ45 ports
MaitinimasDC 12/24V
Maks. energijos suvartojimas50W
LED indikatoriaiW/B Learn More
Mygtukai(1) Factory reset (2) 12V/Dry/24V switch
UA-Retrofit-Reader (250mA)18 UACC-Cable-DoorLockRelay length: 152.4 m (500 ft)
UA-Lock-Electric (400mA)24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
SertifikataiCE, FCC, IC

Software
Management ApplicationAccess
Programinės įrangos informacijaThe software version can be checked at https://unifi.ui.com
