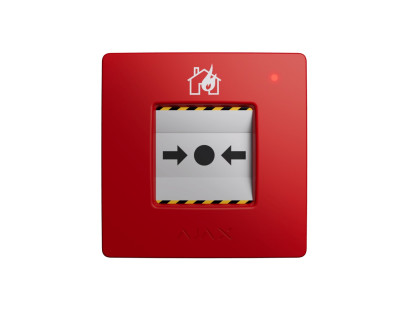

Bevielis gaisro pavojaus mygtukas Ajax Manual Call Point 60815.171.NC1 (raudonas)
- Bendrieji duomenys
- Produkto pavadinimasAjax EN54 ManualCallPoint (Red) Jeweller
- TipasWireless addressable resettable manual fire alarm call point with programmable scenarios
- Atitikties standartaiEN 54-11, EN 54-25
- FunkcijosTriggers manual fire alarm and automation scenarios; activates sirens, VADs, and system outputs
- Alarm feedbackLED indication of alarm state
- Reset mechanismManual reset with included plastic key
- Apsauga nuo talpinimo neteisėtos įtakosBuilt-in tamper alarm
- Baterijos tipas2 × CR123A (pre-installed)
- Baterijos veikimo laikasUp to 7 years
- Belaidis protokolasJeweller
- Ryšio nuotolisUp to 1,700 m (5,500 ft) in open space
- Alarm transmission speedWithin 3 seconds
- Radijo funkcijosAutomatic power adjustment, frequency hopping, connection loss detection in 36 seconds
- Additional functionsAutomation scenario activation, visual alarm verification via MotionCam or Ajax cameras, siren activation
- Montavimo būdasSmartBracket mount (no enclosure disassembly needed)
- Pairing methodQR code scanning via Ajax apps
- Configuration and testingThrough Ajax apps (on-site or remotely)
- Darbinės temperatūros diapazonas0 °C to +50 °C (32 °F to 122 °F)
- Darbinė drėgmėUp to 80%
- Korpuso spalvaRed
- Matmenys102 × 104 × 39 mm (4.02 × 4.09 × 1.53 in)
- Svoris214 g (7.55 oz)
- Dažnių juostos866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz (region-dependent)
- SuderinamumasAjax control panels and range extenders (full compatibility list available online)
- KomplektacijaManualCallPoint (Red) Jeweller, SmartBracket, 2 × CR123A batteries, plastic reset key, transparent front lid, installation kit, quick start guide
