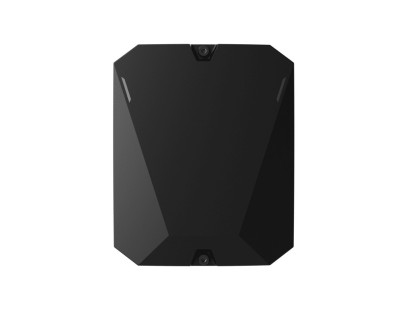

Bevielė centralė Ajax Hub BP juoda (2xSIM 4G, Ethernet/Wi-Fi)
- Bendroji informacija
- Produkto versijaHub BP Jeweller: Wireless battery-powered control panel. Supports photo verification. Connectable via two SIM cards (2G/3G/LTE)
- Produkto versijaHub BP Jeweller (without casing): Designed for installation in an Ajax casing. Supports photo verification. Connectable via two SIM cards (2G/3G/LTE)
- Belaidžio ryšio veikimo nuotolisUp to 2,000 m (6,550 ft) with Ajax devices
- Išorinės antenos palaikymasSupports External Antenna for LTE and radio communication
- CMS ryšysSupports connection to the monitoring company’s CMS
- Naudotojo pranešimaiSupports push notifications and SMS
- Baterijos veikimo laikas (NB 7.2V/95Ah)23 months (both with and without casing)
- Baterijos veikimo laikas (RB 6.4V/96Ah)8 months (Hub BP Jeweller), 7 months (without casing)
- Baterijos veikimo laikas (NB 7.2V/190Ah)46 months (without casing only)
- Baterijos veikimo laikas (RB 6.4V/78Ah)16 months (without casing only)
- Energijos taupymo režimasEnabled with features: device polling & photo every 5 min, server & CMS polling every 6 hrs (configurable 1–24h), LED off, firmware/log updates off
- Radijo protokolaiJeweller (alarms/events) and Wings (photos/large data)
- Jeweller veikimo nuotolisUp to 2,000 m (6,550 ft) open space
- Wings veikimo nuotolisUp to 1,700 m (5,550 ft) open space
- ŠifravimasEncrypted two-way radio communication (NIST AES-128)
- Pirmosios nuotraukos pristatymas9 seconds
- Apsauga nuo klastojimoJeweller protocol includes encryption & device authentication
- Apklausos intervalasRegular polling to monitor device states
- Duomenų vientisumasWings ensures data backup & resend during interruptions
- Atitikties standartaiEN 50131 (Grade 2), PD 6662:2017, NIST (AES-128)
- SIM palaikymasTwo micro SIM slots (2G/3G/LTE)
- Maksimalus prijungtų įrenginių skaičius100 wireless Ajax devices
- Naudotojų / patalpų palaikymas50 users, 50 rooms
- Automatizavimo ir saugumo grupės32 automation scenarios, 9 security groups
- Ryšio dažnių juostosVaries by region (e.g., 868.0–866.5 MHz, 915.8–926.5 MHz, etc.)
- Hub BP Jeweller spalvaWhite, black
- Hub BP Jeweller matmenys196 × 238 × 100 mm / 7.72" × 9.37" × 3.94"
- Hub BP Jeweller svoris1,010 g / 35.63 oz
- Hub BP (be korpuso) spalvaBlack
- Hub BP (be korpuso) matmenysTBA
- Hub BP (be korpuso) svorisTBA
- Vidinis maitinimo šaltinis4.2–16.2 V⎓ (max 2 A), rechargeable or non-rechargeable, up to 195 Ah (not included)
- Išorinis maitinimo šaltinis4.2–16 V⎓ (max 2 A), zinc-air battery up to 600 Ah (not included)
- Darbinė temperatūra-10°C to +40°C (14°F to 104°F)
- Darbinė drėgmėUp to 75%
- Komplektacija (Hub BP Jeweller)Hub BP Jeweller, Installation kit, Quick start guide
- Komplektacija (Hub BP be korpuso)Hub BP Jeweller (without casing), External LED board, Cable for external LED board, Installation kit, Quick start guide
