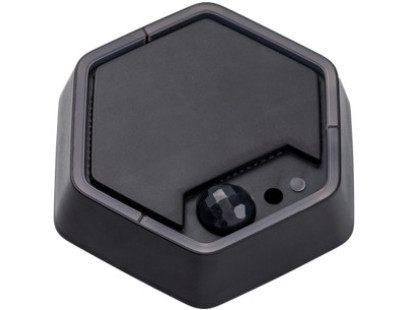

Daugiafunkcinis jutiklis Bisly UMS 5.3 (juodas, 24V DC, IP30)
- Bendra informacija
- ProduktasUMS Supersensor – Universal Comfort Sensor for Smart Buildings
- Part number1201153 (White), 1202153 (Black)
- PritaikymasMultifunction indoor sensor for advanced building automation systems, combining air quality, climate, lighting and occupancy detection
- Maitinimo įtampa24 V DC ±25%, reverse polarity protection
- Energijos sąnaudosMax. 1.5 W at 24 V when all sensors are active, internal overcurrent protection approximately 1.1 A
- Power outputSoftware-controlled high-side power switch, rated current 0.35 A, reverse polarity protection, short-circuit protection, overcurrent protection, Port: +24 V OUT
- Air temperature sensorAccuracy: ±0.5 °C (max.), Range: -10 to 85 °C
- Relative humidity sensorAccuracy: ±4% RH (max.), Range: 0–80% RH
- CO₂ measurement range0–2000 ppm, Accuracy: ±150 ppm ±0.5% of reading
- Judesio atpažinimasPIR sensor, human detection radius 4 m under typical conditions, ΔT ≥ 5 °C, speed 1 m/s, mounting height 2.8 m
- Light intensity sensor0.1–30000 lux, Accuracy ±20%
- Color temperature sensor2000–5000 K, Accuracy ±500 K
- VOC sensoreTVOC sensor, Range: 0–30000 ppb
- LED controlRGB LEDs with software-controlled color and brightness, configurable to display CO₂, VOC, temperature, humidity, motion and other parameters
- Digital inputs2 digital inputs, supports +24 V DC, internal 2 kΩ pull-up resistor to +5 V DC, active low ≤ 2 V, Ports: IN1–IN2
- PWM outputs3 × PWM outputs, default frequency 100 Hz, operating range 0–12 V, Ports: PWM1–PWM3
- Programinės įrangos atnaujinimasOver-the-air (OTA) update capability
- Bendravimo sąsajaRS-485 (proprietary Bisly protocol) interface for Bisly UM8 Pro controller
- Darbinė temperatūra+5 to +40 °C
- Darbinė drėgmėMax. 80% RH, non-condensing
- Montavimo tipasScrew mounting
- Color and finishWhite or black, matte
- Enclosure flammabilityUL94 V0 flame-retardant
- Svoris125 g
- Matmenys98 × 110 × 40 mm
- Environmental protection ratingIP30
- SertifikataiCE, RoHS, WEEE
- Directive complianceLVD, EMC, RoHS, WEEE
- SavybėsAir quality monitoring, climate sensing, occupancy detection, lighting measurement, encrypted RS-485 communication, legacy system integration support, security-compliant relay output, energy-efficient building control
