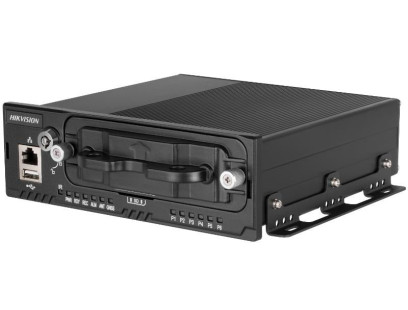

Hikvision automobilinis NVR AE-MN5043(1T/SSD)(RJ45)
- Patvirtinimai
- AutomatikaEN50155(EN 50155:2021 clause 13, EN 50121-3-2:2016+A1:2019, EN45545-2:2020, EN50153:2014+A1:2017+A2:2020, BS EN ISO:13732-1:2008,ISO 13732-1:2006;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021)
- AplinkosaugaCE-RoHS (2011/65/EU and amendment 2015/863/EU)
- SaugumasCB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020 )
- Sąsajos
- Signalizacijos įvestis4 high/low level signal inputs, 1 pulse signal input, 1 button input
- Signalizacijos išvestis2 relay signal outputs
- Tinklo sąsajaFront panel :1 ×10M/100M RJ45Rear panel: 1 × 10M/100M 6-pin aviation connectorNote：The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional.
- Sensor-in4 high/low level signal inputs
- Serial prievadas1 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface)
- Kodavimo/iškodavimo parametrai
- Garso bitų dažnis16 Kbps
- Garso glaudinimasG.711a/G.711u/G.722.1/G.726
- Dviguba transliacijaSupported
- Užkodavimo raiškaMain stream: 1080P/720P/WD1/4CIFSub-stream: 720P/WD1/4CIF/2CIF/CIF
- Kadrų dažnisPAL: 1 to 25 fps; NTSC: 1 to 30 fps
- Srauto tipasVideo, video & audio
- Vaizdo glaudinimasH.265/H.264
- Bendra
- SertifikavimasCE/FCC/Emark/EN50155/CB/EN45545/ROHS 2.0/ISO-7637-2
- Darbo drėgmė10% to 95% (non-condensing)
- Darbinė temperatūra-25 °C to +70 °C (-13 °F to +158°F)
- Operation MethodMouse, IR remote control, Web control, and touchscreen
- Energijos suvartojimasStandby: ≤ 0.5 WFull load: ≤ 55 WNote: Without peripheral and storage media ≤ 20 W
- Maitinimo šaltinis+9 to +36 VDC
- Produkto matmenys206 mm × 225.4 mm × 60.1 mm (8.1" × 8.87" × 2.37")
- Weight (Without Storage Media)1.66 kg (3.67 lb.)
- Pozicija
- GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna
- Jutiklis
- G-SensorBuilt-in
- Atmintis
- HDD/SDD2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TBHDD/SSD data can be exported locally via this converter (optional)Hard Disk Case with heating function (optional)
- SD Card Storage1 × SD card, up to 512 GB（not for baseline. Note the SD card capacity when ordering）
- Video/Audio Input
- IP Camera4-ch connected via PoE interfaces and 4-ch extendable via PoE switch.
- Dvipusis garsas1, integrated in EXT.DEV interface
- Video/Audio Output
- Garso išvestis1, integrated in EXT.DEV interface
- Vaizdo išvestisMain output: 1, integrated in EXT.DEV interface. VGA: 1
- Bevielis tinklas
- 3G/4G1 × 4G card slot, 1 × FAKRA antenna
- Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna(Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)
