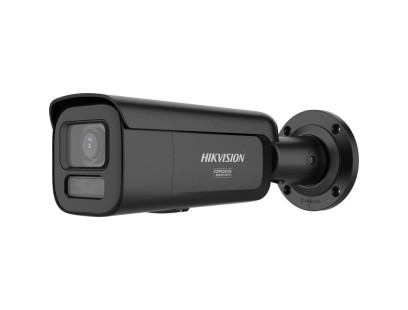

Hikvision bullet DS-2CD2687G3T-LIZSY F2.8-12 (juoda, 8 MP, 60 m IR; 60 m LED, ColorVu 3.0)
- Bendrieji duomenys
- Vaizdo jutiklis1/1.8" Progressive Scan CMOS
- Didžiausia raiška3840 × 2160
- Minimalus apšvietimasColor: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with light
- Užrakto greitis1 s to 1/100,000 s
- Diena&NaktisIR cut filter
- Kampo keitimasPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
- Objektyvo tipasVarifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
- Objektyvo tvirtinimasIntegrated
- Rainelės tipasFixed
- DiafragmaF1.2
- Ryškumo gylis1 m to ∞
- DORI RangeWide: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m; Tele: D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m
- Papildomo apšviešimo tipasWhite Light, IR
- Papildomo apšvietimo diapazonasUp to 60 m
- Išmanus papildomas apšvietimasYes
- IR bangos ilgis850 nm
- Pagrindinis srautas50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Antrinis srautas50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Trečias srautas50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) (*Third stream is supported under certain settings.)
- Vaizdo glaudinimasMain stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
- Vaizdo bitų dažnis32 Kbps to 16 Mbps
- H.264 tipasBaseline Profile, Main Profile, High Profile
- H.265 tipasMain Profile
- Bitų dažnio valdymasCBR, VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream
- Garso tipasMono sound
- Garso glaudinimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso bitų dažnis64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)
- Garso atrankos dažnis8 kHz / 16 kHz / 32 kHz / 48 kHz
- Pašalinių garsų šalinimasYes
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIONVIF (Profile S, T, G), ISAPI, SDK, ISUP
- Naudotojas/prievadasUp to 32 users (3 user levels: administrator, operator, user)
- SaugumasPassword protection, HTTPS encryption, 802.1X authentication (EAP-TLS, LEAP, MD5), watermark, IP filter, HTTP/HTTPS basic & digest auth, WSSE, RTSP over HTTPS, control timeout, security audit log, TLS 1.1/1.2/1.3, MAC-based authentication
- Vidinė atmintisNAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- KlientasiVMS-4200, Hik-Connect, Hik-Central
- NaršyklėPlug-in free: Chrome 80+, Firefox 80+, Edge 89+; Local service: Chrome 80+, Firefox 80+, Edge 89+
- Nuotraukos parametrų keitiklisYes
- Vaizdo nustatymaiRotate mode, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via client or browser)
- Dienos/nakties perjungiklisDay, Night, Auto, Schedule
- Nuotraukų pagražinimasBLC, HLC, 3D DNR, Distortion Correction, Defog
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)130 dB
- Vaizdo stabilizavimasEIS
- Privatumo kaukė4 programmable polygon privacy masks
- Interneto sąsaja1 RJ45 10M/100M self-adaptive Ethernet port
- Vidinė atmintisMicroSD/SDHC/SDXC, up to 512 GB
- Audio Interface1 input (line in), 1 output (line out), non-equilibrium, max. amplitude 3.3 Vpp, impedance: in 4.7 KΩ / out 100 Ω
- Signalizacijos sąsaja1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Perkrovimo mygtukasYes
- Pagrindinės funkcijosMotion detection (human/vehicle), video tampering, exception
- Išmaniosios funkcijosScene change detection
- Linkage MethodsUpload to FTP/NAS/memory card, notify surveillance center, trigger recording/capture, send email
- Veido atpažinimasYes
- Perimetro apsaugaLine crossing, intrusion, region entrance/exiting (human/vehicle)
- Galia12 VDC ± 25%, 1.08 A, max. 13 W, Ø5.5 mm plug, reverse polarity protection; PoE (IEEE 802.3at class 4), max. 15 W
- MedžiagaMetal (front cover, body, bracket)
- Matmenys298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8")
- Pakuotės dydis386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
- SvorisApprox. 1520 g (3.4 lb.)
- Svoris su įpakavimuApprox. 2326 g (5.1 lb.)
- Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F), humidity ≤ 95% (non-condensing)
- Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F), humidity ≤ 95% (non-condensing)
- Bendros funkcijosHeartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
- Language Support33 languages including English, Russian, German, French, Spanish, Portuguese, Chinese, Japanese, Korean, and more
- EMC CertificationsCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety CertificationsUL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017
- Aplinkosaugos atitiktisCE-RoHS: 2011/65/EU
- Apsaugos klasėIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
- Apsauga nuo korozijosNEMA 4X (NEMA 250-2018)
