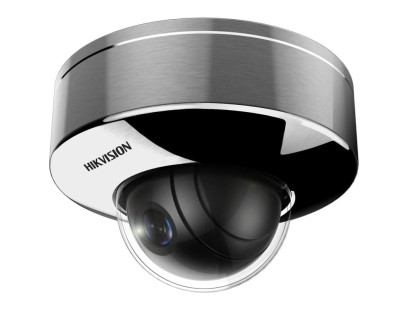

Hikvision DS-2XE6145G0-HS F2.8 (atspari sprogimams)

Lęšis
Lęšio tipasFixed focal length, 2.8 mm, 4 mm, and 6 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 102.5°, vertical FOV 53.4°, diagonal FOV 118.9°4 mm, horizontal FOV 80.2°, vertical FOV 40.8°, diagonal FOV 93.4°6 mm, horizontal FOV 52.5°, vertical FOV 27.4°, diagonal FOV 60.2°
Lęšio montavimasM12
DiafragmaF1.0

DORI
DORI2.8 mm, D: 54.6 m, O: 21.7 m, R: 10.9 m, I: 5.5 m4 mm, D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m6 mm, D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m

Vaizdas
Pagrindinis srautas50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
Trečias srautas50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Vaizdo suspaudimasMain stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
Vaizdo bitų greitis32 Kbps to 8 Mbps
H.264 tipasBaseline Profile/Main Profile/High Profile
H.265 tipasMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)5 fixed regions for each stream
Tikslinis apkarpymasYes

Garso
Garso suspaudimasG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Garso bitų greitis64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 320 Kbps (MP3)
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimasYes

Tinklas
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIOpen Network Video Interface, ISAPI, ISUP 5.0
User/HostUp to 32 users3 levels: administrator, operator and user
Vidinė atmintisNAS (NFS, SMB/CIFS), ANR
KlientasiVMS-4200, Hik-Connect
NaršyklėPlug-in required live view: IE10, IE11Local service: Chrome 57.0+, Firefox 52.0+

Nuotrauka
Nuotraukos parametrų keitiklisYes
Nuotraukos nustatymaiRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Diena/Naktis režimasDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
Nuotraukų pagražinimasBLC, HLC, 3D DNR, defog

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Garso1 input (line in), 1 output (line out)
Signalizacija1 alarm input, 1 alarm output (supports max. 24 VDC, 1 A or 110 VAC, 500 mA)
RS-4851 RS-485 interface

Funkcijos
Pagrindinės funkcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detectionScene change detection, unattended baggage detection, object removal detection

Pagrindinis
Maitinimas12 VDC ± 20%, 0.8 A, max. 10 W, two-core terminal blockPoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 12.5 W
MedžiagaSUS 304
DydisØ138 mm × 123.4 mm (Ø5.43" × 4.86")
Pakuotės dydis251 mm × 215 mm × 189 mm (9.88" × 8.46" × 7.44")
SvorisApprox. 2810 g (6.2 lb.)
Svoris su įpakavimuApprox. 4040 g (8.9 lb.)
Darbo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijosAnti-banding, heartbeat, mirror, privacy mask, password protection, watermark, IP address filter
ŠildytuvasYes
Cable Length1.3 m (4.27 ft.)

Patvirtinimai
EMCFCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013)RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015IC: IC-VoC (ICES-003 Issue 7:2020)KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)
SaugumasUL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014 CB: IEC 62368-1:2014 BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015LOA: SANS IEC60950-1
AplinkosaugaCE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
ApsaugaIP68 (IEC 60529-2013)
Explosion-Proof ProtectionATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68For explosive gas atmospheres, the maximum surface temperature is 85°C;For flammable dust atmospheres, the maximum surface temperature is 80°C;IIC: for explosive gas atmospheres other than mines susceptible to firedamp;For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
