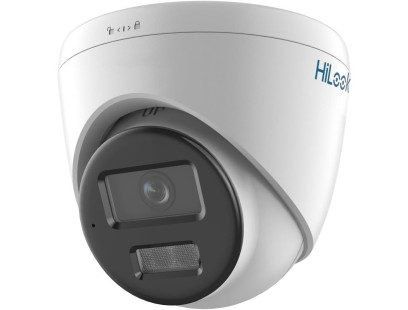

HiLook turret kamera IPC-T249HAA-LUF/SL F2.8 (4 MP, 2.8mm, 30m IR/LED, ColorVu)
- Patvirtinimai
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7
- AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- ApsaugaIP67: IEC 60529-2013
- SaugumasCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
- Garsas
- Garso bitų dažnis64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps(MP3)
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
- Garso atrankos dažnis8 kHz/16 kHz
- Garso tipasMono sound
- Pašalinių garsų šalinimasYes
- Camera
- Kampo keitimasPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Diena&NaktisIR cut filter
- Vaizdo jutiklis1/3" Progressive Scan CMOS
- Didžiausia raiška2560 × 1440
- Minimalus apšvietimasColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Užrakto greitis1 s to 1/100,000 s
- DORI
- DORI2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
- Funkcijos
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- SąsajaUpload to FTP,notify surveillance center,send email,trigger recording,trigger capture
- Bendra informacija
- MatmenysØ112 mm × 82 mm (Ø4.4" × 3.2")
- Flashing Light-LU：NA-LUF/SL：White Light-LUF/SRB：Red and Blue Light
- Pagrindinės funkcijosHeartbeat,mirror,flash log,password reset via email,password protection,anti-banding
- KalbaEnglish, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
- MedžiagaCover: Plastic, main body: Metal
- Pakuotės dydis150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
- Maitinimas-LU: 12 VDC ± 25%, 0.52 A, max. 6.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W, -LUF/S(L)(RB): 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.8 W
- Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Svoris-LU: Approx. 350 g (0.8 lb.)-LUF/S(L)(RB): 400 g (0.9 lb.)
- Svoris su įpakavimu -LU: Approx. 530 g (1.2 lb.) -LUF/S(L)(RB): 595 g (1.3 lb.)
- Apšvietimas
- IR bangos ilgis850 nm
- Išmanus papildomas apšvietimasYes
- Papildomo apšvietimo diapazonasUp to 30 m
- Papildomo apšviešimo tipasIR,White Light
- Nuotrauka
- Dienos/nakties perjungiklisDay,Night,Auto,Schedule
- Nuotraukų pagražinimasBLC,HLC,3D DNR
- Vaizdo nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privatumo kaukė4 programmable rectangular privacy masks
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)120 dB
- Sąsaja
- Integruotas mikrofonasYes,1 built-in microphone
- Integruotas garsiakalbis-LU: NA-LUF/S(L)(RB): Max. power consumption: 2 W, max. sound pressure level: 10 cm: 101 dB
- Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
- Vidinė atmintis-LU：NA-LUF/S(L)(RB)：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Perkrovimo mygtukas-LU：NA -LUF/S(L)(RB)：YES
- Objektyvas
- DiafragmaF1.0
- Ryškumo gylis2.8 mm: 1.7 m to ∞4 mm: 1.6 m to ∞
- Focal Length & FOV2.8 mm, horizontal FOV 101.5°, vertical FOV 54.6°, diagonal FOV 122.1°4 mm, horizontal FOV 84.1°, vertical FOV 45.6°, diagonal FOV 99.1°
- Rainelės tipasFixed
- Objektyvo tvirtinimasM12
- Objektyvo tipasFixed focal lens, 2.8 and 4 mm optional
- Tinklas
- APIONVIF (Profile S, Profile G), ISAPI, SDK
- KlientasiVMS-4200,HiLookVision
- ProtokolaiTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
- SaugaPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
- NaršyklėPlug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Vaizdas
- Bitų dažnio valdymasCBR,VBR
- H.264 tipasBaseline Profile,Main Profile,High Profile
- H.265 tipasMain Profile
- Pagrindinis srautas50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Antrinis srautas50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Vaizdo bitų dažnis32 Kbps to 16 Mbps
- Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
