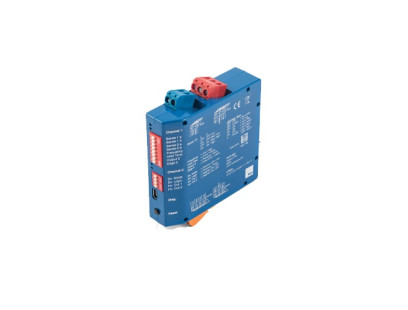

Indukcinės kilpos kontroleris NICE LP22R01
- Bendra informacija
- ModelisLP22R01
- TipasSingle-channel inductive loop detector for vehicle presence detection
- PritaikymasUsed for automatic gates, barriers, and industrial doors
- Maitinimo įtampa12–24 VAC/DC (wide-range)
- Energijos suvartojimas< 2 W
- Loop frequency20 kHz – 130 kHz (auto-calibrating)
- JautrumasAdjustable via DIP switches (4 levels)
- Atsako laikas100 ms (typical)
- Detection outputRelay (normally open) for presence signal
- Output contact rating1 A / 30 VDC or 0.5 A / 125 VAC (resistive)
- Self-tuningAutomatic on power-up
- IndikatoriaiLED (Power ON / Detection status)
- Korpuso medžiagaABS, flame retardant
- MontavimasDIN rail or wall-mounted
- Darbinė temperatūra-20°C to +60°C
- Apsaugos klasėIP30 (suitable for control panel mounting)
- Matmenys (I x P x A)78 x 22 x 88 mm
- SvorisApprox. 100 g
- Loop cable lengthUp to 200 meters (twisted pair cable)
- Compatible systemsNice barriers (M3BAR, M5BAR, LBAR, WIDEM, WIDEL), gate operators, and other automation systems
- Standartų atitiktisCE compliant, EMC approved
