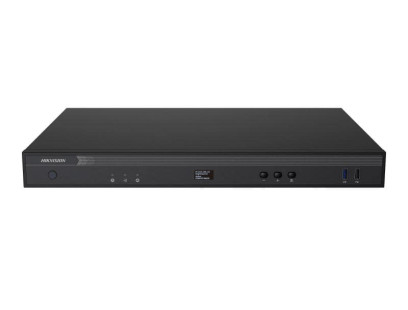

LED Kontroleris Hikvision DS-DT60P-02HDI12NO/U
- Garso įvestis
- Garso įvesties sąsajos tipas1 channel of HDMI 2.0 + 1 channel of embedded Android
- Garso įvesties sąsajos2
- Garso išvestis
- Audio Output Interface3.5 mm audio output
- Garso išvesties sąsajos1
- Broadcast Control Feature
- File FormatVideo, image, webpage, document, clock, text, and background music
- Video Playback Performance1-channel 4096 × 2160@60 Hz, 4-channel 1920 × 1080@60 Hz, 6-channel 1280 × 720@60 Hz
- WonderCast ClientSupported
- Korpusas
- Korpuso aukštis1 U
- Korpuso plotis440 mm (17.32 inch)
- Valdymo sąsaja
- IR įvestis1 × 3.5 mm connector Supports the access of IR remote control.
- Device Parameters
- Mygtukas+: increase brightness-: decrease brightnessSource: change signal source
- Maitinimo jungiklisButton switch
- Serijinė sąsaja1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact) + 1 × RS-485 serial port for light perception (green Phoenix contact) Baud rate: 115200, data bit: 8
- Priekinė panelė
- IndikatoriusActive: The device is running.Source: The signal source is accessed.Error: The device operation exception occurs.
- Maitinimo jungiklisOn: The device is started and running. Off: The device is not powered on or is not started.
- Bendra informacija
- Dydis440 mm × 44.5 mm × 320.8 mm (17.32 inch × 1.75 inch × 12.63 inch)
- Bendras svoris4.560 kg (10.053 lb)
- Grynasis svoris3.369 kg (7.427 lb)
- Pakuotės dydis (P × A × G)589 mm × 103 mm × 410 mm (23.19 inch × 4.06 inch × 16.14 inch)
- Pakuotėje1 × AC power cord, 1 × mounting bracket, 2 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 3 × bar antenna, 1× RF remote control
- Ekranas128 × 64, OLED screen
- Laikymo drėgmė10% to 90%
- Laikymo temperatūra-10°C to 50°C
- Darbinė drėgmė10% to 90%
- Darbinė temperatūra-10°C to 50°C
- Sąsaja
- USB sąsaja1 channel of USB 2.0 + 1 channel of USB 3.0
- LED Controller Power
- Vidutinės sąnaudos≤42 W
- Maitinimas100 to 240 VAC, 50/60 Hz
- Maitinimo sąsajų kiekis1
- Tinklas
- Valdymo tinklo prievadas2 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Connects to the external network.
- Apdorojimo našumas
- Ryškumo valdymas1 to 100 tunable (level-by-level white balance)
- Spalvos gylis16 MP
- Pilkumo lygis256
- Vaizdo mastelio keitimasSupported
- Input Frame Rate25 Hz to 120 Hz
- Apdorojimo gylis8 bit
- Produkto modelis
- Produkto modelisDS-DT60P-02HDI12NO/U
- Gaminio tipas
- Gaminio tipasLED controller
- Sending Card Interface
- Light Sensor PortSupported
- Sistema
- CPU4-core 64-bit ARM cortex-A55 2.0 GHz
- Atminties talpa4 GB
- Saugojimo talpa32 GB
- SistemaAndroid 12
- Vaizdo įrašo įvestis
- Maksimali vaizdo įvesties raiškaHDMI 2.0: 4K; DVI: 1080p
- Vaizdo įvesties sąsajos tipas1 HDMI2.0 + 1 DVI + 1 embedded Android
- Vaizdo įvesties sąsajos3
- Vaizdo įvesties apdorojimo funkcijaProcessing depth: 8 bitSampling format: RGB: 444YUV: 444YUV: 422YUV: 420
- Video Input ResolutionDVI port:Max. resolution: 1920 × 1200@60 HzMin. resolution: 320 × 180@60 HzSupports custom resolution. Total resolution should be no more than 2.6 MP@60 HzMax. width: 144 to 4096, alignment: 2 alignmentMax. height: 144 to 4096, alignment: 1 alignmentSupports HDCP 1.4. Interlacing signal input is not supported.,HDMI 2.0 port: Max. resolution: 4096 × 2160@60 HzMin. resolution: 320 × 180@60 HzSupports custom resolution. Total resolution should be no more than 8.84 MP@60 HzMax. width: 144 to 8192, alignment: 2 alignmentMax. height: 144 to 8192, alignment: 1 alignmentSupports HDCP 1.4. Interlacing signal input is not supported.,Embedded Android:Max. resolution: 1920 × 1200@60 HzMin. resolution: 320 × 180@60 HzSupports custom resolution. Total resolution should be no more than 2.6 MP@60 HzMax. width: 144 to 4096, alignment: 2 alignmentMax. height: 144 to 4096, alignment: 1 alignmentSupports HDCP 1.4. Interlacing signal input is not supported.
- Vaizdo išvestis
- LED Loading Interface TypeRJ-45
- LED įkrovimo sąsajos12
- Vaizdo išvesties į LED krovimo talpaSingle port load 650000,Width 144 - 8192,Height 64 - 8192,Width must be a multiple of 2 and height must be a multiple of 1
- Loading ModeMini loading: single port load 650000Standard loading: single port load 2925000 (available on any network port)
- Maksimali vaizdo išvesties raiška7800000
- Vaizdo tiesioginės peržiūros išvesties sąsajos tipasHDMI 1.4
- Type of Video Loop Output Interface1 channel of HDMI 2.0 + 1 channel of DVI
- Vaizdo tiesioginės peržiūros išvesties sąsajos1
- Video Live View Output Resolution720p@60 Hz
- Video Loop Output Interface2
- Video Loop Output ResolutionDVI port:Max. resolution: 1920 × 1200@60 HzMin. resolution: 320 × 180@60 HzSupports custom resolution, total resolution not exceeding 2.6 MP@60 Hz. Max. width: 144 to 4096, widith must be a multiple of 2. Max. height: 144 to 4096, height must be a multiple of 1.Supports HDCP 1.4.,HDMI 2.0 port:Max. resolution: 4096 × 2160@60 HzMin. resolution: 320 × 180@60 HzSupports custom resolution. Total resolution should be no more than 8.84 MP@60HzMax. width: 144 to 8192, alignment: 2 alignmentMax. heihgt: 144 to 8192, alignment: 1 alignmentSupports HDCP 2.2.
- Video Output Interfaces12
- Video Wall
- Fono formatasJPG/JPEG
- Fono raiškaMin.: 640 × 480, Max.: 1920 × 1200
- Fono vaizdai1
- Sluoksniai per įrenginį7
- Atidaryti langai3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window
- Scenos10
- Subtitrų šriftasSupports Xiaomi font and custom font
- Subtitrų plotis32760
- Subtitrai1
- Bevielis ryšys
- Antena3 × bar antenna
- BluetoothBluetooth 4.0
- Nuotolinio valdymo pultasSupports IR remote control and RF remote control
- Wi-FiSTA 2.4 GHz, AP 2.4&5 GHz
