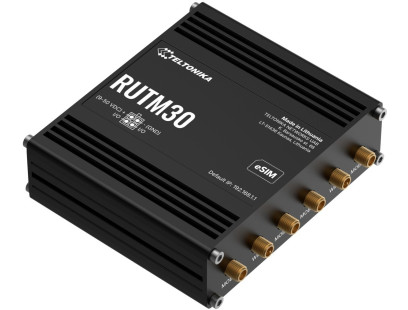

Maršrutizatorius 2 prievadų Teltonika RUTM30 (WiFi 5)
- Bendra informacija
- ModelisTeltonika RUTM30
- Įrenginio tipasIndustrial 5G Router
- Mobilusis ryšys5G Sub-6GHz SA/NSA: up to 3.4 Gbps DL, 900 Mbps UL; 4G LTE Cat 19: 1.6 Gbps DL, 200 Mbps UL; 3G: 42 Mbps DL, 5.76 Mbps UL
- 5G dažniain1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78
- 4G dažniaiFDD: B1, B3, B5, B7, B8, B20, B28, B32, B71; TDD: B38, B40, B41, B42, B43
- 3G dažniaiB1, B5, B8
- 3GPP versijaRelease 16
- SIM palaikymas2 x 2FF SIM slots + 1 x eSIM, with automatic SIM switching
- eSIM funkcijosConsumer eSIM, up to 7 profiles (no data plans included)
- Belaidžio ryšio standartai802.11b/g/n/ac Wave 2 (Wi-Fi 5), Dual-band, MU-MIMO, up to 867 Mbps
- „WiFi“ funkcijosAccess Point & Station, up to 150 users, Mesh (802.11s), Fast Roaming (802.11r), 802.11k/v/w support
- „WiFi“ saugumasWPA2/WPA3, AES-CCMP, TKIP, EAP-TLS, PMF, client isolation, QR code access
- Ethernet prievadai1 x WAN + 1 x LAN (10/100/1000 Mbps, auto MDI/MDIX)
- Maršruto parinkimo funkcijosStatic/Dynamic Routing (BGP, OSPF, RIP, EIGRP, NHRP), Policy Routing
- Tinklo protokolaiIPv4/IPv6, TCP/UDP, ICMP, SNMP, MQTT, DHCP, DNS, HTTP(S), FTP, SSH, Telnet, etc.
- Ugniasienė ir saugumasPreconfigured & custom rules, DDOS protection, VLAN, TPM 2.0, WEB filter, 802.1x client
- VPN palaikymasOpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
- Įvesties/išvesties prievadai2 x configurable Digital Input/Output (4-pin power connector)
- Įvesties/išvesties specifikacijosInput: 0–6V (low), 8–50V (high); Output: open collector, max 30V, 300mA
- ValdymasWeb UI, SSH, CLI, SNMP (v1/v2/v3), FOTA, JSON-RPC API, RMS, TR-069
- Debesų platformosAzure IoT Hub, AWS IoT Core, ThingWorx, Cumulocity
- MQTT šliuzasModbus MQTT Gateway for remote control/data over broker
- Pramoniniai protokolaiOPC UA (Client/Server), Modbus (TCP Client/Server), DLMS, DNP3
- CPUMediaTek Dual-Core 880 MHz, MIPS1004Kc
- RAM / Atmintis256 MB DDR3 / 16 MB NOR + 256 MB NAND flash
- Maitinimo šaltinis9–50 VDC via 4-pin connector or passive PoE (Mode B, 9–50 VDC)
- Energijos suvartojimasIdle: 3.9 W, Max: 9 W
- KorpusasAnodized aluminum
- Matmenys100 x 30 x 93.7 mm (W x H x D)
- Svoris319 g
- Tvirtinimo parinktysDIN rail, wall, flat surface (kits required)
- Darbo temperatūra-40 °C to +75 °C
- Drėgmės diapazonas10% to 90% (non-condensing)
- Apsauga nuo dulkių ir drėgmėsIP30
- SertifikataiCE, UKCA, CB, EAC, RCM, WEEE, EMC compliant (EN 55032, 55035, etc.)
- Antennos jungtys4 x SMA (Mobile), 2 x RP-SMA (WiFi)
- LED indikatoriaiPower, Mobile type, Mobile signal, LAN/WAN status
- Komplekte esantys priedai4 x 5G SMA antennas, 2 x WiFi magnetic RP-SMA antennas, 1.5 m Ethernet cable, SIM adapter kit, 18W PSU, Hex key, Quick Start Guide
