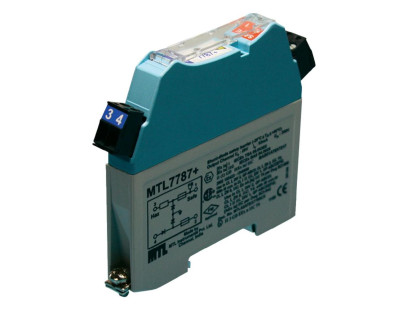

MTL7787+ Zenerio barjeras

Maximum voltage of Zener diode when fuse blows

28V

Minimum value of terminating resistor

300 Ohm

Maximum short-circuit current

93mA

Number of Channels

2

Maximum end-to-end resistance

333 Ohm

Working Voltage

26.6V

Maximum Voltage

27.2V

Fuse Rating (continuous)

50mA

Operating Temperature Range

-20°C to + 60°C

Storage Temperature

-40°C to + 80°C

Humidity

95% RH

Dimmensions, mm

H90 x W105 x D12.6

Weight, kg

0.140

Safety Description

28V 300Ω 93mA

Supply voltage

20 to 35V dc

Output current

4 to 20 mA

Voltage available to transmitter and lines

16.2V @ 20mA with 250Ω load, 11.0V @ 20mA with 500Ω load

Accuracy

±2μA under all conditions

Safe-area load resistance

0 to 500Ω

Supply current

45mA typical at 20mA and 24V supply; 60mA maximum at 20mA and 20V supply
