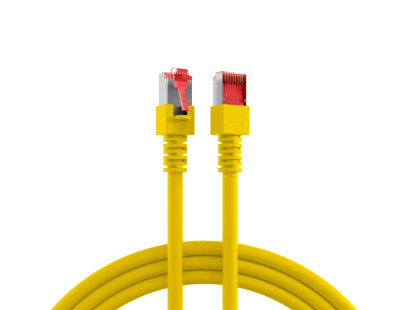

Patch kabelis S/FTP Cat.6 EFB K5511.0,25 (0,25 m, LSZH, geltonas)
- Technines specifikacijos
- AWG-size27/7
- Allocationpagal TIA/EIA 568B
- Anti-kink sleeveformuotas
- Area of applicationPramoninis Ethernet, Struktūrinis kabeliavimas, Duomenų centras
- Bending radius>31 mm
- Kabelis construction4x2
- Kabelis shapeapvalus
- Kabelis TipasS/FTP
- Cabling standardEN50173, ISO/IEC 11801, ANSI/TIA-568
- Kategorija6
- Colour anti-kink sleevegeltona
- Colour outer sheathgeltona
- Conductive shieldPasirinktas skydelio kontaktas
- Laidininkas MaterialVaris
- Laidininkas resistance DC185 Ω/km
- ConnectorIEC 60603-7-5
- Connector TipasRJ45 standartas
- Contact Resistance30 mΩ
- ContactsAuksu padengti
- Current capacitymax. 1 A
- Fire retardant versionpagal IEC60332-1
- Halogen freepagal IEC60754-2
- Harmonised StandardEN 50575
- Impedance100
- Insulation Resistance10 MΩ
- Izoliacija materialLSZH
- Ilgis imprintTiesa
- Locking leverTiesa
- Loop resistance370 Ω/km
- Low smokepagal IEC61034
- Mating cycles≥750
- Modelapdengtas
- Oil resistantne
- Operating-/ tempering voltagemax. 50 V DC
- Operating Temperature0 – 60 °C
- Outer diameter of the Kabelis6.2 mm
- Ozone resistanceNe
- Pin assignment1:1
- PrintingCat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568B.2-1 Halogen Free ***Gigabit*** www.efb-elektronik.de
- Resistance unbalance≤ 5 %
- Resistant to chemicalsNetiesa
- Silicone-freeTiesa
- Suitable for degree of protection (IP)IP20
- Tape width250MHz
- Temperature Range (Installation)-20 – 60
- Temperature Range (Operation)-20 – 75
- Temperature Range (Storage)-20 – 60
- Test voltage1000 (V DC, 1min) branduolys/branduolys ir branduolys/ekranas
- Transmission5Gbit
- Tipas of connector connection 1RJ45 8(8)
- Tipas of connector connection 2RJ45 8(8)
- UL approbatedNetiesa
- UV resistantne
