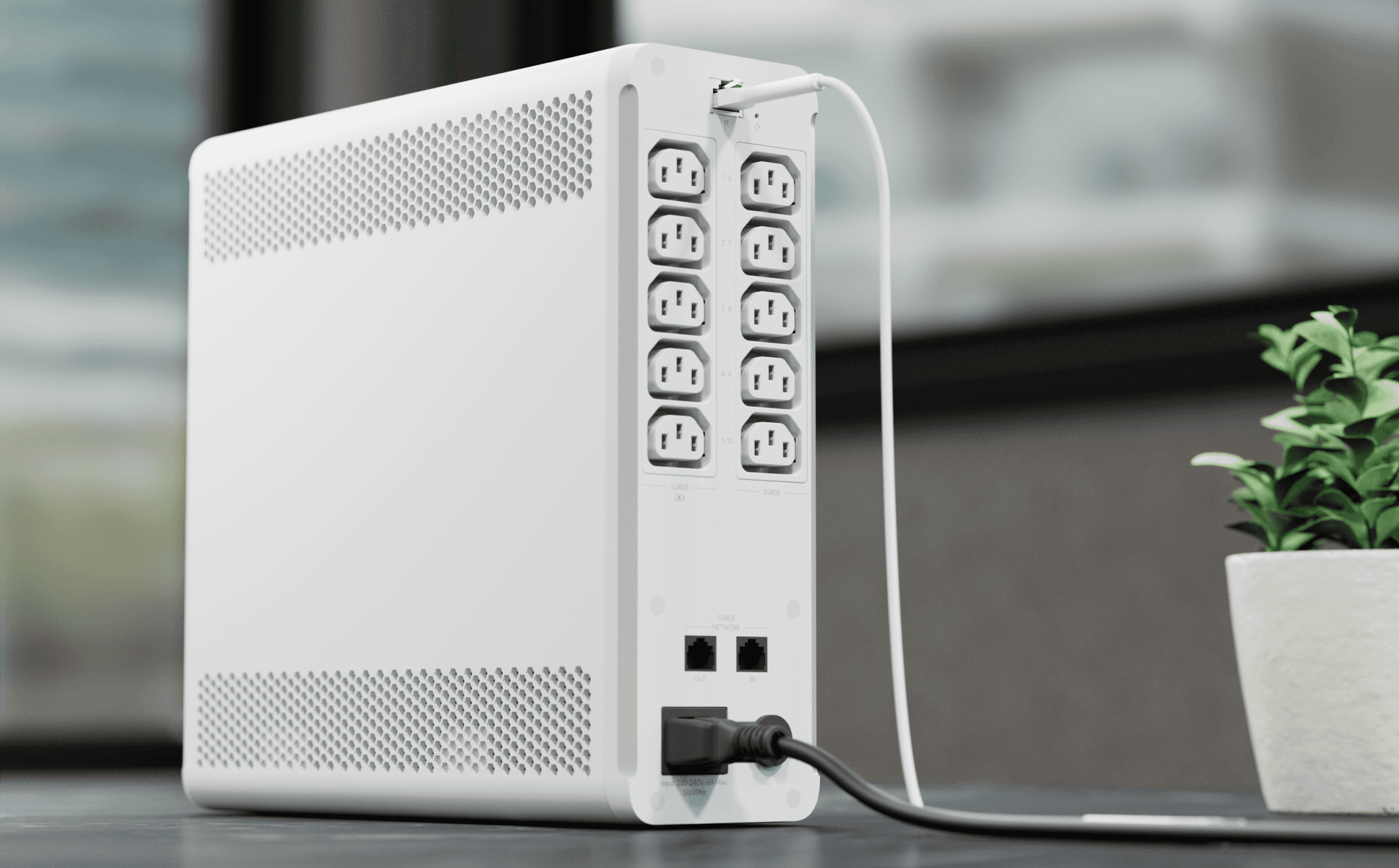

Rezervinis maitinimo šaltinis Ubiquiti UPS-TOWER 1000VA/600W
- Bendrosios savybės
- Matmenys288 x 99 x 280.5 mm (11.3 x 3.9 x 11")
- Svoris7.85 kg (17.3 lb)
- Korpuso medžiagaPolycarbonate and acrylonitrile butadiene styrene blend
- Formos koeficientasDesktop
- Atsparumas oro sąlygomsIP20
- ValdymasEthernet
- Tinklo sąsaja(1) 100/10 MbE port for network connection, (2) GbE ports for surge in/out
- Maitinimo įėjimas(1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord
- Išėjimo galia(5) Battery backup/surge protection: C13, (5) Surge protection: C13
- Talpa1,000VA / 600W
- UPS tipasLine interactive
- Įvesties įtampos diapazonas170—280V AC
- Maitinimo būdas(1) TN system, 220—240V AC, 6A Max., 50/60 Hz
- Nominali įvesties įtampa230V AC
- Išvesties įtampa220—240V AC
- Nominal Output Voltage230V AC
- Dažnių diapazonasAC mode: 50/60 Hz ±5 Hz (Auto sensing), Battery mode: 50 Hz ±1 Hz
- AC Voltage Regulation±10% (Battery mode)
- Perjungimo laikas6 ms typical; 10 ms max. (Battery mode)
- Wave FormSimulated sine wave (Battery mode)
- Akumuliatoriaus tipas(1) Lead Acid 12V, 9Ah
- RuntimeFull load: 2 min, Half load: 7 min
- Baterijos įkrovimo laikas6-8 hours recovery to 90% capacity
- Overload at On-Line Mode110% 5 min go to fault, 120% immediate fault
- Overload at Battery Mode110% shutdown in 5 sec, 120% immediate shutdown
- Short Circuit ProtectionOn-Line Mode: Breaker, 250V AC, 10A
- Output Short-Circuit CurrentIpeak 401.9A, Irms 160.7A
- Mygtukai(1) Power, (1) Factory reset
- LED indikatoriaiStatus: Off, Flashing white (initializing), Steady white (waiting), Steady blue (working), Flashing blue (battery mode), Alternating white/blue (firmware upgrade), Rapid flashing blue (locate), Steady red (warning), Flashing red (low battery)
- Battery IndicatorAll off: 0%, (1)–(5) Steady blue LEDs: 1–100% in 20% increments
- Darbinis aukštis3,000 m (1.9 mi)
- Darbo aplinkaPollution Degree 2
- Ambient Storage Temperature-20 to 50° C (-4 to 122° F)
- Aplinkos darbinė temperatūra0 to 40° C (32 to 104° F)
- Aplinkos darbinė drėgmė0 to 95% noncondensing
- SertifikataiCE, IEC 62040-1
