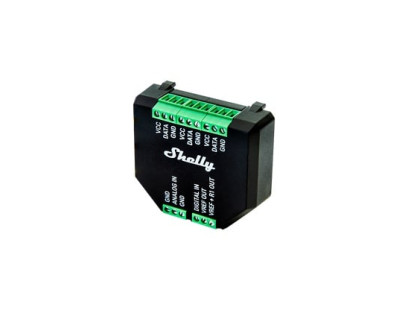

Papildomas modulis Shelly Plus 1/1PM Add-on
- Bendrosios savybės
- Dydis (Aukštis × Plotis × Gylis)37x42x15 ±0.5 mm / 1.46 × 1.65 × 0.59 ±0.02 in
- Svoris105 g / 3.70 oz
- Korpuso medžiagaPlastic
- Varžtinių prijungimo gnybtų didžiausias sukimo momentas0.1 Nm / 0.89 lbIn
- Laidinio skerspjūvio plotasmax. 1 mm² / 17 AWG
- Laidinio nuplėštos izoliacijos ilgis4.5 mm / 0.18 in
- SpalvaBlack
- Temperatūra-20 °C to 40 °C / -5 °F to 105 °F
- Drėgmė30 % to 70 % RH
- Maks. aukštis2000 m / 6562 ft
- Power supply voltage ACN/A
- Power supply voltage DC3.3 V (from Shelly Plus device)
- Energijos sąnaudos< 0.5 W (without sensors)
- VCC max. current10 mA
- VREF OUT max. current1 mA
- VREF+R1 OUT resistor10 kΩ
- Supported Shelly Plus devicesShelly Plus 1, 1PM, 1 UL, 1PM UL, 2PM, 2PM UL, i4, i4DC, 0-10V Dimmer PM, RGBW PM
- Supported Shelly Gen3 devicesShelly 1 Gen3, 1PM Gen3, 2PM Gen3, Shutter, i4 Gen3, DALI Dimmer Gen3, Dimmer 0/1-10V PM Gen3, EM Gen3
- Supported Shelly Gen4 devicesShelly 1 Gen4, 1PM Gen4, 2PM Gen4
- Temperature readingDepends on the DS18B20 or DHT22 sensors
- Humidity readingDepends on the DHT22 sensor
- Digital input threshold-15 V to 0.5 V (True) / 2.5 V to 15 V (False)*
- Analog input range0 to 100%
- Analog input report threshold1%**
- Voltmeter range0 to 10 V
- Voltmeter report threshold0.1 V**
- Analog input / Voltmeter accuracyBetter than ±5%
