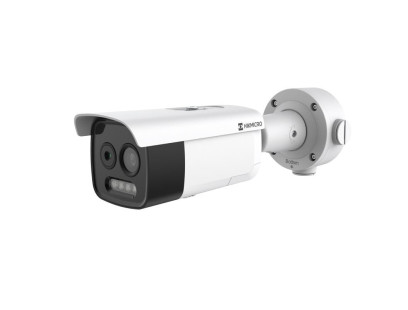

Termografinė kamera HikMicro HM-TD2628T-3/G1/T3A
- Patvirtinimai
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)KC (KSC9832: 2019; KSC9835: 2019)
- AplinkosaugaCE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
- ApsaugaIP67: IEC 60529-2013IK10: IEC 62262-2002
- SaugumasCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005LOA: SANS/IEC 60950-1
- Garsinis ir vaizdinis signalas
- Garso signalizacija Yes, for two types of audible alarm (VCA and Temperature Exception)2 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types)
- Vaizdinė signalizacijaYes. White light alarm with adjustable flashing frequencies
- Baltos šviesos diapazonasUp to 30 m
- Detection Range Table/Smart Function Range
- VCA Range for Humans36 m
- VCA Range for Vehicles90 m
- Bendra informacija
- Matmenys349.1 mm × 113 mm × 105mm
- Energijos suvartojimas12 VDC ± 25%: 0.85A to 1.42 A, max. 12.8WPoE (802.3at, class 4): 42.5 V to 57 V, 0.22 A to 0.3 A, max. 12.8W
- Maitinimo šaltinis12 VDC ± 25%, 24 VDC ± 25% two-core terminal blockPoE (802.3at, class 4)
- Apsaugos lygisIP67 Standard, IK10TVS 6000V lightning protection, surge protection, voltage transient protection
- Tinklo naršyklės kalba 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Svoris1710 g
- Darbinė temperatūra / drėgmėTemperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
- Apšvietimas
- IR distancijaUp to 30m
- Light SupplementHybrid (IR, White light or Smart mode)
- Vaizdo efektas
- Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
- Tikslinė spalvaYes. Supported in white hot and black hot mode.
- Sąsaja
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Signalizacijos įvestis2, alarm input (0-5 VDC)
- Signalizacijos išvestis2, alarm output (alarm response actions configurable)
- Garso įvestis1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Garso išvestisLinear level, impedance: 600 Ω
- Bendravimo sąsaja1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)
- Tinklas
- APIISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),OTAP
- KlientasiVMS-4200, Hik-Connect
- Vidinė atmintisMicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- ProtokolaiIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
- SaugaUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- Tiesioginis vaizdo žiūrėjimasUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- NaršyklėLive view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +Local service : Chrome 57.0+, Firefox 52.0 +
- Optinis modulis
- Diafragma (diapazonas)F1.6
- Matymo laukas84.0° × 43.1° (H × V)
- Židinio nuotolis4.3 mm
- Vaizdo jutiklis1/2.7" Progressive Scan CMOS
- Minimalus apšvietimas0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Rezoliucija5MP, 2688 × 1944
- Užrakto greitis1 s to 1/100,000 s
- WDR120 dB
- Išmanioji funkcija
- Fire DetectionDynamic fire detection, up to 10 fire points detectable
- Smoke DetectionSupport smoke detection on optical channel
- Smoking DetectionUp to 10 smoking points detected
- Temperatūros tikslumasMax (±2°C, ±2 %)
- Temperatūros matavimas3 temperature measurement rule types (point, area, line), 21 rules in total
- Temperatūros diapazonas-20 °C to 650 °C (-4 °F to 1202 °F)
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Termovizorio modulis
- DiafragmaF1.0
- Skaitmeninis priartinimas×2, ×4
- Matymo laukas50° × 37.3° (H × V)
- Židinio nuotolis3.6mm
- IFOV3.33mrad
- Vaizdo jutiklisVanadium Oxide Uncooled Focal Plane Arrays
- Minimali fokusavimo distancija0.3 m
- NETD≤25 mK (25°C, F1.0)
- Taškinis žingsnis12 μm
- Rezoliucija256 × 192
- Spektrinis diapazonas8 μm to 14 μm
- Vaizdas ir garsas
- Garso glaudinimasG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Pagrindinis srautasThermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Antrinis srautasThermal: 25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
- Vaizdo glaudinimasMain Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
- Video and Image
- Spalvų paletės17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
