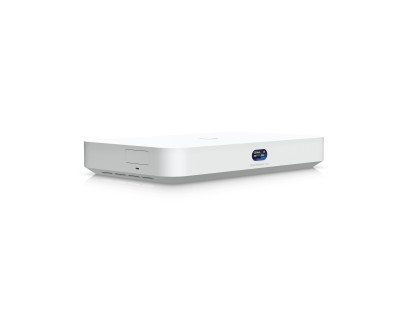

Tinklo valdiklis Ubiquiti UniFi Cloud Gateway UCG-FIBER
- Bendrieji duomenys
- Matmenys212.8 x 127.6 x 30 mm (8.3 x 5 x 0.5 ")
- UniFi programų rinkinysNetwork ✓, Protect ✓, Access ✓, Talk ✓, Connect ✓
- Valdomi UniFi įrenginiai50+
- Managed Cameras(15) HD, (8) 2K, (5) 4K
- Managed Access Hubs50
- Vienu metu prijungti naudotojai500+
- Max. WAN Port Count6
- Numatytieji WAN prievadai(1) 10G SFP+, (1) 10 GbE RJ45
- Prievadų išdėstymas4 × 2.5 GbE RJ45 (2.5G/1G/100M/10M), 1 × 10 GbE RJ45 (10G/2.5G/1G), 2 × 10G SFP+ (10G/1G)
- IDS/IPS pralaidumas5 Gbps
- Formos koeficientasCompact desktop
- Saugumo ypatybėsStateful Firewall ✓, Application-Aware Layer 7 Firewall ✓, DPI & Traffic Identification ✓, Zone-Based Firewall Filtering (Regions, Domains, Apps) ✓, Content Filtering ✓, Intrusion Prevention (IPS/IDS) ✓, Ad Blocking ✓, IDS/IPS Signatures 55,000+ with CyberSecure ✓, VLAN/Subnet-based Traffic Segmentation ✓
- VPN ir SD-WANLicense-Free SD-WAN ✓, Site-to-Site VPN Site Magic ✓, IPsec ✓, OpenVPN ✓, Identity Endpoint One-Click VPN ✓, Teleport Zero-Configuration VPN ✓, WireGuard ✓, L2TP ✓, VPN Client OpenVPN ✓, WireGuard ✓
- Networking FeaturesMulti-WAN Load Balancing ✓, Dynamic Routing (OSPF) ✓, Advanced QoS ✓, Multicast DNS (mDNS) ✓, Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓, Integrated RADIUS Server ✓, RADIUS over TLS (RadSec) ✓, UniFi LTE Backup Support ✓, Internet Quality & Outage Reporting ✓
- MAC adresų lentelės dydis4,000
- Hardware SpecsNVR Storage: Selectable NVMe SSD up to 2 TB, PoE Budget: 30W, Voltage Range PoE Mode: 50-57V, Max. Power Consumption: 29.4W (Excl. PoE), Power Method: DC jack (54V DC/1.1A), Power Supply: 54V DC/1.1A (included), Supported Voltage Range: 100–240V AC
- ProcesoriusQuad-core ARM® Cortex®-A73 at 2.2 GHz
- Sisteminė atmintis3 GB
- SvorisWithout SSD: 675 g (1.5 lb), With SSD: 734 g (1.6 lb)
- Korpuso medžiagaPolycarbonate
- LCM ekranas0.96" status screen
- ValdymasEthernet, Bluetooth
- LED indikatoriaiEthernet ✓, SFP+ ✓
- Mygtukas(1) Factory-reset
- ESD/EMP apsaugaAir: ± 8kV, Contact: ± 4kV
- Aplinkos darbinė temperatūra0 to 40° C (32 to 104° F)
- Aplinkos darbinė drėgmė5 to 95% noncondensing
- Atitinka NDAA✓
- SertifikataiCE, FCC, IC, SRRC
