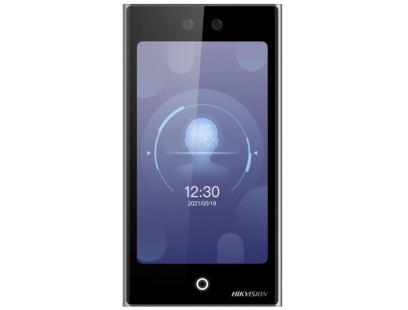

Veidų atpažinimo terminalas Hikvision DS-K1T673DWX(EU)
- Bendra informacija
- Image sensor5 MP CMOS, 1/2.8" type
- Objektyvo židinio nuotolis2.8 mm
- Maximum aperturef/1.6
- Lens iris typefixed
- Lens focal typefixed
- FOVhorizontal: 100–110°, vertical: 50–60°, diagonal: 125–135°
- DORI atstumasDetection: 65 m, Observation: 26 m, Recognition: 13 m, Identification: 6.5 m
- Maximum illumination distancewhite LED: up to 15 m, IR LED: up to 15 m, Intelligent lighting control automatically adjusts the intensity of IR and white LEDs in real time to prevent overexposure, ensuring clear visibility of objects at varying distances in low-light conditions.
- Minimalus apšvietimascolor: 0.005 lx, B/W: 0 lx
- Signal-to-noise ratio (SNR)more than 52 dB
- Rezoliucija5 MP (2880 × 1620), 4 MP (2560 × 1440), 3 MP (2304 × 1296), 2 MP (1920 × 1080), 0.6 MP (1024 × 576)
- Vaizdo dažnisup to 25 fps
- Vaizdo pasukimas0°, 180°
- Vaizdo kodekasH.265, H.264
- Dinaminis diapazonas120 dB (True WDR)
- SaugyklamicroSD, Ajax NVR, Supports microSD cards up to 256 GB (Class V30 or faster, not included)
- Built-in microphoneWith the corresponding settings, the camera can record audio at the scene.
- Garso kodekasG711-ULAW, G711-ALAW, G726, G722
- Judesio atpažinimasThe camera detects motion using software image frame analysis.
- AI object detectionPeople, Pets, Vehicles
- Port1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
- ProtokolasHTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS
- SuderinamumasONVIF (Profile S/T*), Ajax cameras and NVRs can be integrated into third-party video management systems (VMS). *Profile T supports basic streaming and configuration; advanced features such as metadata, event handling, or edge recording may not be available.
- Vaizdo protokolasJetSparrow, Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
- Ajax signalizacijos vizualinis patvirtinimasThe system allows configuring scenarios in which Ajax detectors trigger selected cameras to start recording, with recorded events immediately delivered to the mobile or desktop monitoring app.
- PrivatumasAdvanced privacy controls with fully configurable access rights for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop, ensuring only authorized parties can access video streams, event history, and device settings.
- Apsauga nuo sabotažomTLS encrypted connection, Authentication via Ajax Cloud, Secure Boot protection against firmware spoofing, OTA signature verification for secure automatic firmware updates
- PoE standard802.3at/af
- PoE power consumptionmaximum: up to 7.2 W, average: up to 6.8 W
- External power supply unit12 V⎓ ±20%, 1 A
- 12 V DC power consumptionmaximum: up to 6.1 W, average: up to 5.8 W
- Matmenys114 × 114 × 67 mm
- Svoris430 g
- Darbinės temperatūros diapazonasfrom −30 °C to +60 °C
- Darbinė drėgmėup to 90%
- Apsaugos klasėIP65, IK08
- SpalvaBlack, White
- Pilnas komplektasDomeCam Mini HL (5 Mp/2.8 mm), Installation template, Installation kit, Quick start guide
