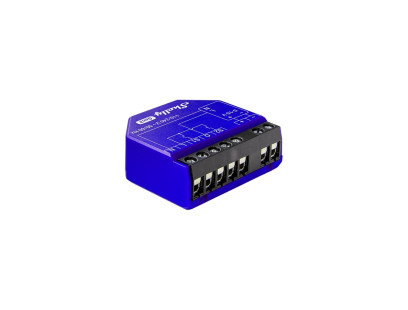

Wi-Fi valdomas 1 kanalo dimeris Shelly Dimmer 0/1-10V PM Gen3 (13A)
- Physical
- Dydis (Aukštis × Plotis × Gylis)38.5x43.5x17mm / 1.52x1.71x0.67in
- Svoris28.5 g / 0.99 oz
- Varžtinių prijungimo gnybtų didžiausias sukimo momentas0.4 Nm / 3.5 lbin
- Laidinio skerspjūvio plotas0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
- Laidinio nuplėštos izoliacijos ilgis5 to 6 mm / 0.20 to 0.24 in
- MontavimasWall console/behind wall/ceiling construction
- Korpuso medžiagaPlastic
- Korpuso spalvaShell: Pantone 2736C (blue) Print: White
- Connector colorBlack
- Environmental
- Aplinkos darbinė temperatūra-20 °C to 40 °C / -5 °F to 105 °F
- Drėgmė30 % to 70 % RH
- Maksimalus aukštis2000 m / 6562 ft
- Electrical
- Maitinimas110-240 V~ 50/60 Hz
- Energijos sąnaudos< 1.5 W
- Neutral not neededNo
- 0-10V/1-10V voltage control typeCurrent sourcing
- Išorinė apsauga16 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3
- Output circuits ratings
- Maks. perjungimo įtampa240 V~
- Maks. perjungimo srovė13 A
- Max. control current35 mA
- Sensors, meters
- Voltmeter (AC)110 V - 240 V
- Voltmeter accuracy±10 %
- Ammeter (AC)50 mA - 16 A
- Ammeter accuracy±10 %
- Power and energy metersActive and apparent power Active and apparent energy Power factor
- Measurement data storageNo
- Internal-temperature sensorYes
- Wi-Fi
- Protokolas802.11 b/g/n
- RF juosta2401 - 2495 МHz
- Max. RF power< 20 dBm
- AtstumasUp to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
- Bluetooth
- Protokolas4.2
- RF juosta2400 - 2483.5 MHz
- Max. RF power< 4 dBm
- AtstumasUp to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
- Microcontroller unit
- CPUShelly ESP32 C3
- Clock frequency40 Mhz
- Flash (atmintis)8 MB
- Firmware capabilities
- Grafikai / tvarkaraščiai20
- Webhooks (URL veiksmai)20 with 5 URLs per hook
- ScriptingYes
- MQTTYes
- Advanced schedulesYes
- KVS (Key-Value Store)Yes
